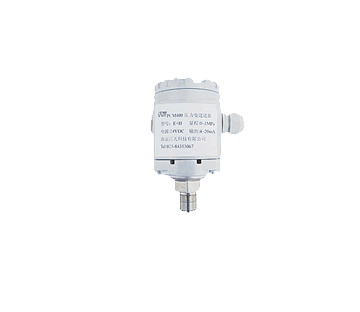

The pressure transmitter is mainly composed of three parts: load cell sensor (also called pressure sensor), measuring circuit and process connector. It can convert the physical pressure parameters such as gas and liquid sensed by the load cell sensor into standard electrical signals (such as 4-20mADC, etc.) to provide secondary instruments such as indicating alarm, recorder, regulator, etc. for measurement, indication and process regulation.

The pressure transmitter is an instrument that accepts the pressure variable and converts the pressure change into a standard output signal in a certain proportion after sensing conversion. The output signal of the transmitter is transmitted to the central control room for pressure indication, recording or control. It is widely used in various industrial automatic control environments, involving water conservancy and hydropower, railway transportation, intelligent buildings, production automatic control, aerospace, military, petrochemical, oil well, electric power, ships, machine tools, pipelines and many other industries. Here is a brief introduction to the principles and applications of some commonly used sensors.

Pressure type: gauge pressure, absolute pressure, sealing pressure

Range: - 100kPa... 0~20kPa... 100MPa

Power supply output: 4~20mA (18~36V);

4~20mA with display (12~36V);

        1~5V、0~5V、0.5~4.5V、

        0~10V(12~32V)

Precision: 0.5% F.S. (typical)

Working temperature: - 20 ℃~85 ℃

Medium temperature: - 20 ℃~85 ℃

Shell material: low copper aluminum alloy

Diaphragm material: stainless steel 316L

Protection grade: IP65

Explosion proof grade: Ex d IIB T6 Gb
